MZPS0850 Series

Description
Specifications
Parameters
Accessories
Other

◆ MZPS0850(binocular) and MZPS0850T(trinocular)

◆ Parallel optical system, zoom body magnification range : 0.8X~5X

◆ Orthoscopic image, large depth of field, long working distance, available to attach various accessories

◆ Widely used in science research, modern biology, medicine, environment, farming, police, micro-electronics, semiconductors and etc which require high precision


MZPS0850外形尺寸	MZPS0850+SD1外形尺寸

MZPS0850T外形尺寸	MZPS0850T+SD1外形尺寸


MZPS0850	MZPS0850+SD1

MZPS0850T	MZPS0850T+SD1

Zoom driver	Parallel optical system, 0.8X~5X continuous zoom body
Magnification	Standard total magnification: 8X~50X, the max. magnification: 225X.
Eyepiece	High eye point and wide field eyepieces(10X，Φ22mm).
Objective	1X Plane objective
WD	91mm
Interpupillary distance adjustment range (10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
Focus range	50mm（Track stand: 100mm）
Binocular eyetubes
PS-WP1.0	PS-W1.0	PS-W0.7

● 0.5X消色差大物鏡PS-W0.5，工作距離186mm
● 0.7X消色差大物鏡PS-W0.7，工作距離135mm

● 1X消色差大物鏡PS-W1.0，工作距離90mm

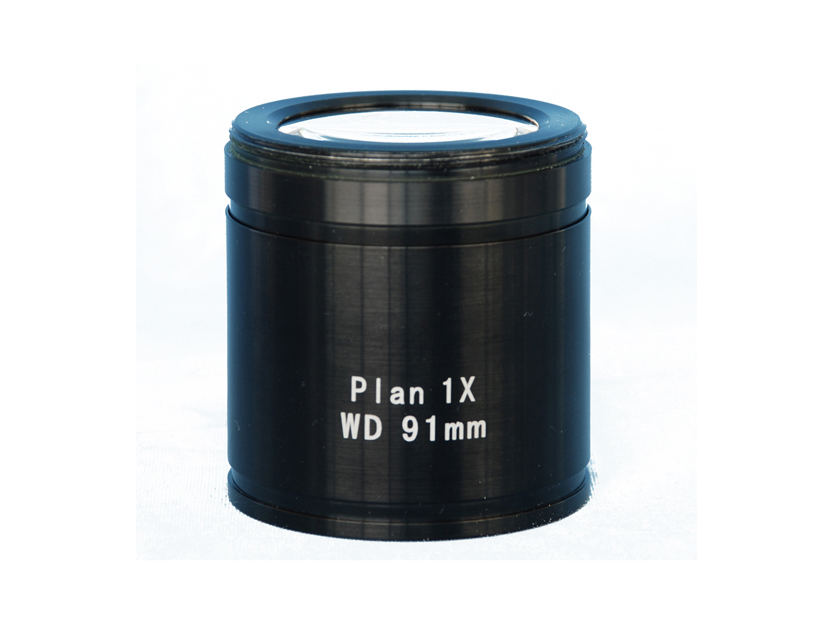

● 1X平場消色差大物鏡PS-WP1.0，工作距離91mm
● 1.5X消色差附加大物鏡PS-W1.5，工作距離40mm（接在PS-WP1.0下使用）

2. 三目分光組 / Trinocular beam splitter


PS-T	PS-T1

● PS-T 拉桿式三目分光組，目鏡觀察為：左100%，右0%（或100%）通光
● PS-T1三目分光組，目鏡觀察為：左50%，右50%通光

可選附件：

	底座組	SD1~SD18
	萬能支架	U1, U2, U3, U4, U1c, U2c, U3c
	目鏡	WFH10X, SWF15X, SWF20X, SWF30X
	分劃目鏡 Inclined 45°
The holder and the head matching dimension		MZPS0850T+SD1外形尺寸


MZPS0850	MZPS0850+SD1

MZPS0850T

Returns

Eyepiece	Item	Specification of different auxiliary objective
Eyepiece	Item	0.5X	0.7X	1X	1.5X（Auxiliary）
10X	Total Mag.	4X~25X	5.6X~35X	8X~50X	12X~75X
10X	FOV（mm）	Φ55~Φ8.8	Φ39.3~Φ6.3	Φ27.5~Φ4.4	Φ18.33~Φ2.93
15X %0

	Stands	SD1~SD18
	Universal stands	U1, U2, U3, U4, U1c, U2c, U3c
	Eyepieces	WFH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	WFH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	Plane achromatic objectives	PS-W0.5, PS-W0.7, PS-W1.0, PS-WP1.0, PS-W1.5
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Auxiliary illuminators	ML01, ML02, MLR60, LGY-150Ω
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
